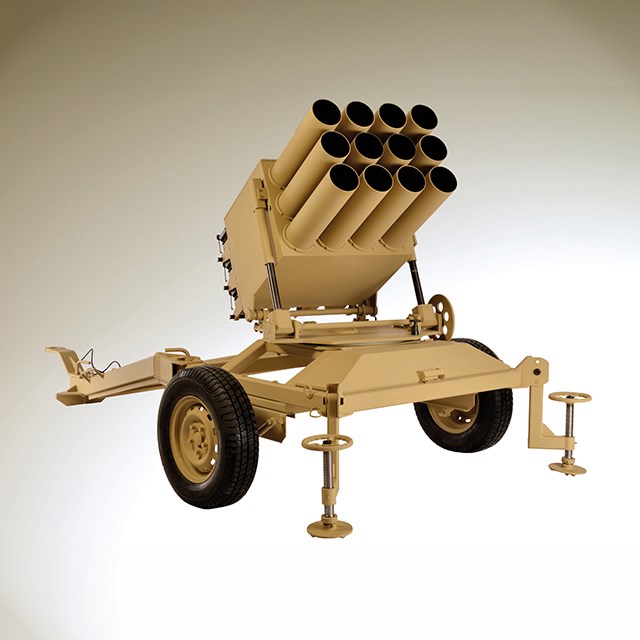

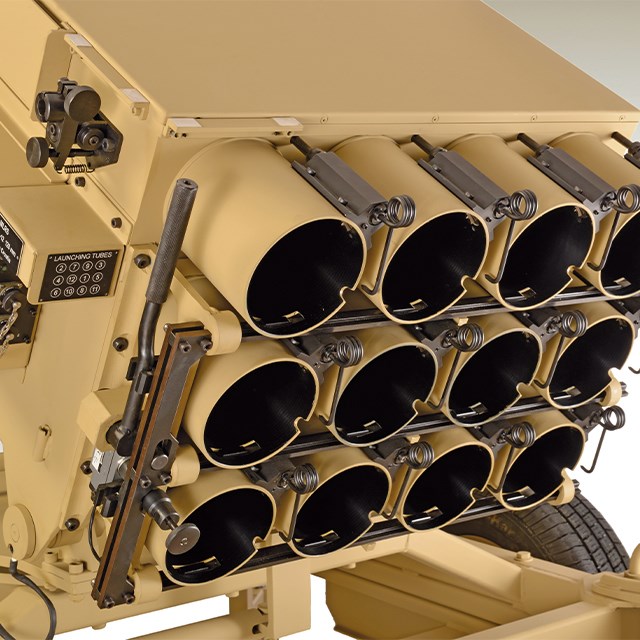

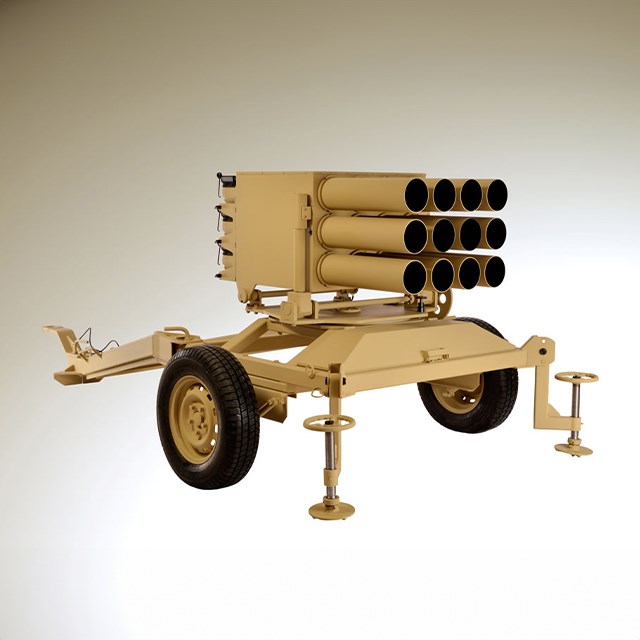

RAK-12 cal. 128mm

MLRS mod. RAK-12 cal. 128mm is rocket artillery system that shoots non-guided rockets by adjustable sequential multiple launching. Rockets which it uses are self-propelled and non-guided, on target cover large kill zone, so primarily designated for use against enemy live force massed or inert in one position.
RAK-12-cal128mm.jpg RAK-12-cal128mm-2.jpg RAK-12-cal128mm-3.jpg

Specifications

Caliber

128 mm

Maximum range with rockets

128 mm M91A1, (A2: 8540 m)

Number of tubes

12  v Tube length: 1200 mm

Horizontal field of action

±15°

Vertical field of action

-1° to 46°

Fire modes - burst fire

12 rockets in 9.6s

Fire modes - single rocket fire

1 rocket in 1 s

Remote controller cable length

25 m

Battery

12V/7Ah  v Battery charging voltage - DC external source: 12 - 24V

Battery charging voltage - AC external source - public electric grid: 110-220V

Charging current

up to 1 A

Impulse current

up to 2,1 A

Impulse length

55 ms

Launcher mass in transport

720 kg

Launcher mass in firing position - unloaded weapon

695 kg

Launcher mass in firing position - loaded weapon

975 kg

Spare parts and accessories box weight

25 kg

Towing eye force

450 N

Launcher length in transport configuration (trails closed)

3740 mm

Clearance, in transport configuration

 270 mm

Track width

1550 mm

Launcher width in transport configuration

1710 mm

Width in combat configuration (trails extended)

2890 mm

Height of empty launcher

1300 mm

Height in combat configuration (46° elevation)

1885 mm

Wheels dimensions

165R13

Time to load the launcher (rockets prepared in advance, equipped with fuses and armed)

1 min 20 sec

Time to convert launcher from transport configuration to the firing configuration (including launcher loading)

up to 3 min 30 sec

Time to convert launcher from transport configuration to the firing configuration (rockets already loaded)

up to 1 min 30 sec

Time to convert launcher from firing configuration to the transport configuration (launcher loaded)

up to 1 min

Angular division

64-00

Time to convert launcher from transport configuration to the firing configuration (rockets already loaded)

up to 1 min 30 sec

Traversing and elevation mechanism

mechanical

Firing control unit electricity usage - fire control unit switched on

up to 80mA

Firing control unit electricity usage - button ARM pressed

up to 190mA

Firing control unit electricity usage - impulse usage with ARMED pressed

up to 2,4mA

Operating temperature range

 -30° to 50°C
