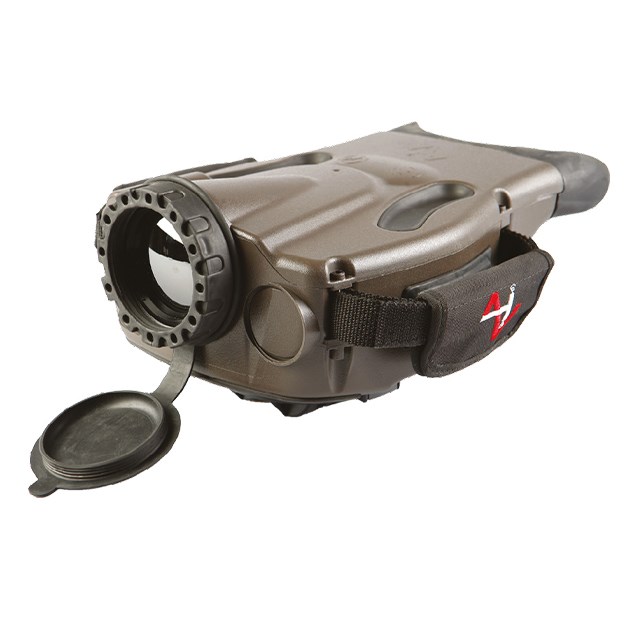

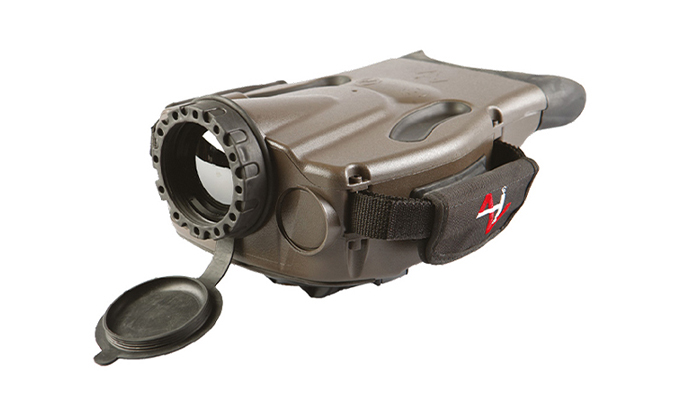

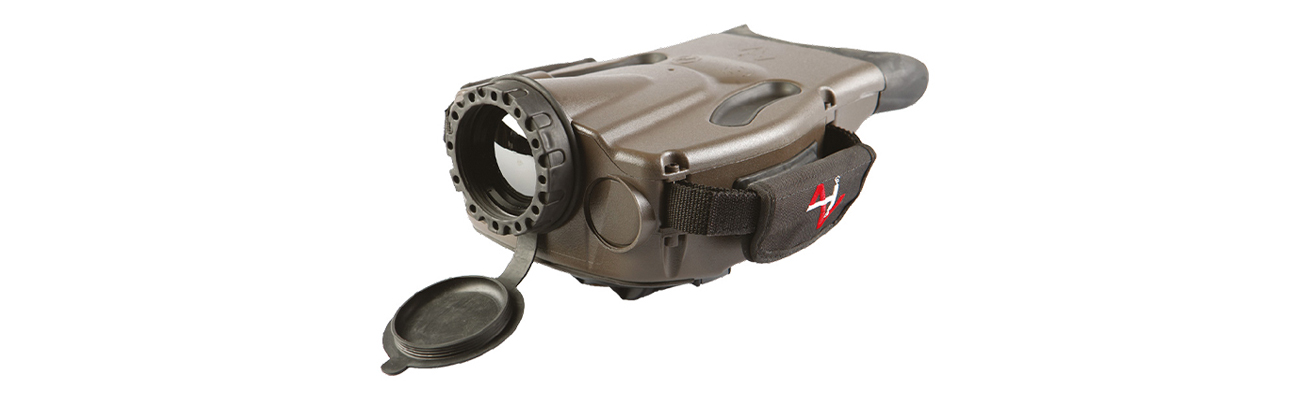

Dragon 640 TL/TD/TV

Dragon is world’s lightest thermal imager with advanced ergonomic design, medium range, new high resolution, and extra high sensitivity ensuring superior image quality and sensor sensitivity for rough environment.
Dragon can locate point of interest with LRF in the 2 km range and acquire its coordinates, azimuth and elevation and have quick transformation into wireless remote control stationary system with tripod and remote-control unit.

Specifications

Resolution

640x480 px

Detector pitch

17 μm

Lens

TL - 75mm F1.3 TD – 75 mm F 1.0 TV – 100mm F1.4

Frame rate

9 / 25 fps

Export restricted

25 fps only

NETD

<>

Switch-on time

3 sec

Environment

Certified to IP67 / MIL-STD-810F

Automatic Calibration

Yes

Temperature range

-25° to +55°C

Zoom Continuous

up to x8

Polarity

W/B/C

Focus

Electronic Focus

Covert/Standby Mode

Yes

Display Type

Dual LCD/Oled 800x600

Video Out

Composite PAL/NTSC

Remote Control capability

Yes

Power / Battery Life

Rechargeable Battery 7,2V, (7-10h)

External Power

9-36V DC

Weight net / with battery

1150g/1450g

Options

Built-In LRF

905/1550nm, 2 km range

Built-In DMC

Auto/manual calibration

Built-In GPS/GLONASS

Yes

Built-In Video recorder

PAL/NTSC, Compression H.264, 64GB

Built-In CCTV

Zoom 36x

Remote control unit

Wire, Wireless (WIFI & 3G)

Built-In Laser pointer

Up to 2km
