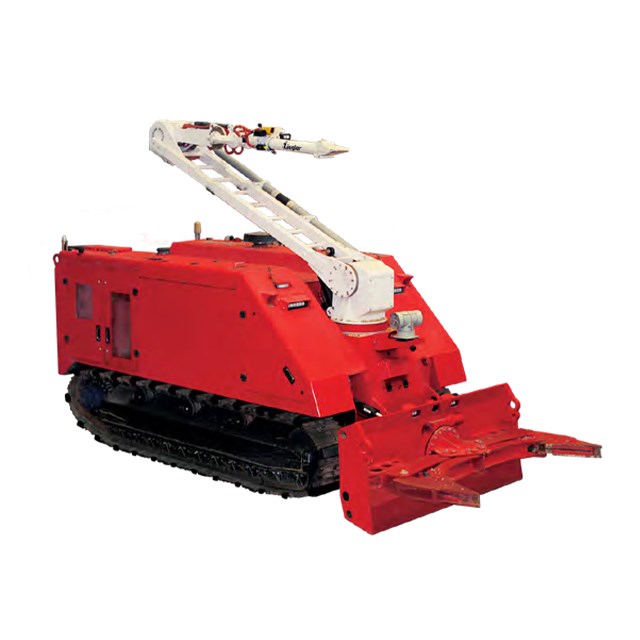

MVF – 5 Emergency Response Robotic System – TUSK

The MVF-5 is multi-mission, heavy-duty, robotic system for emergency response. It serves first responders to execute tasks in the harshest, most demanding and life threatening conditions. The primary objective of the MVF-5 is fire extinguishing in extreme conditions, in inaccessible areas of high risk, clearing roadblocks and debris without direct threat to operators.



APPLICATIONS
  • Survey & Reconnaissance
  • Obstacle Removal on Path of Intervention
  • Firefighting
  • Rescue Support Operations
  • Hazmat/CBRN
  • Logistic Support

Dimensional data

Length

5750 mm

Width total (transport/overall)

2280 mm / 2315 mm

Height

2320 mm

Weight

16000 kg

Engine type

Perkins / Caterpillar

Engine power

186 kW | 250 HP / 205kW | 275 HP

Engine torque

1050 Nm @ 1400 rpm / 1257 Nm @ 1400 rpm

Fuel consumption

25 l/h

Water tank capacity

2500 l

Foam tank capacity

500 l

Ground pressure

0,84 kg/cm²

Operational speed

11 km/h

Longitudinal gradeability

30°

Side slope capability

20°

Fording depth

80 cm
