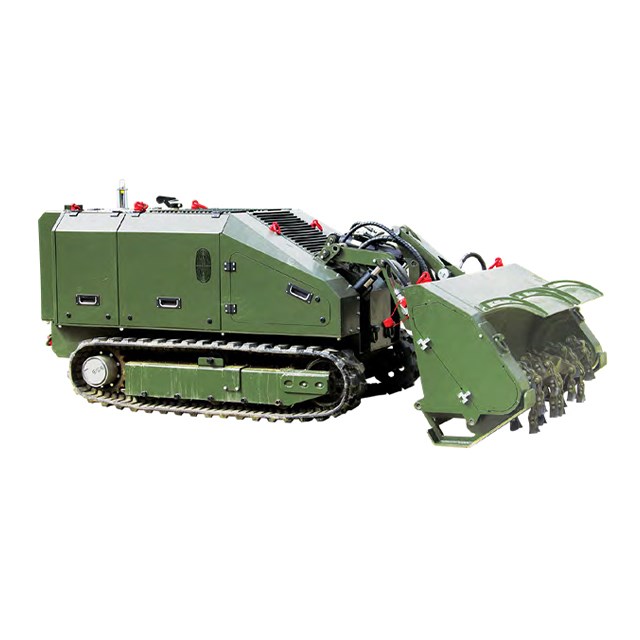

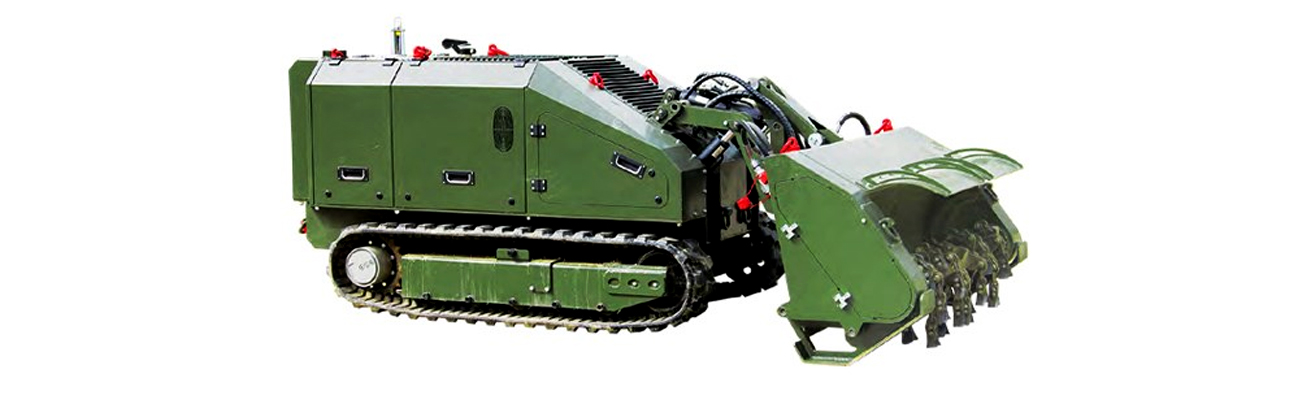

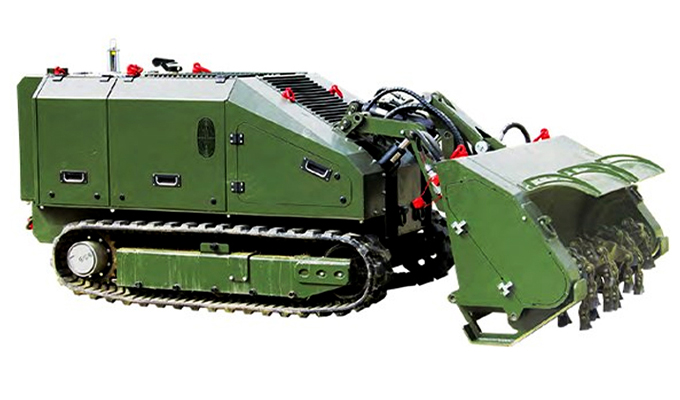

MV2 – Compact EOD Robotic system – HONEY BADGER

The MV-2 is designed and developed as an answer to continuously developing threats, in both humanitarian and combat environments. Based on customers’  needs worldwide, its features merge small dimensions, great power and manoeuvrability which makes MV-2 a perfect system for use in harsh terrains with difficult access. The MV-2 can be easily moved by different means of transportation in a simple and inexpensive way and without need for special permits or escort.



APPLICATIONS
  • Mechanical Ground Preparation & Demining
  • Mechanical Technical Survey & Clearance
  • Deep Interrogation Tasks
  • Mobility / Counter Mobility
  • Reconnaissance & Surveillance Tasks
  • Digging Tasks
  • Route Clearance
  • Breaching Tasks
  • EOD Tasks in C-IED

Dimensional data

Length

3515 mm

Width

1742 mm

Height

1315 mm

Weight

2500 kg

Engine type

Hatz

Engine power

55 kW / 75 HP

Engine torque

260 Nm @ 1600 rpm

Fuel consumption

8 - 12 l/h

Demining capacity

Up to 1150 m²/h

Ground pressure

0,29 kg/cm²

Transport speed

4.5 km/h

Operational speed

0,5 - 1 km/h

Longitudinal gradeability

30°

Side slope capability

30°

Fording depth

16 cm
