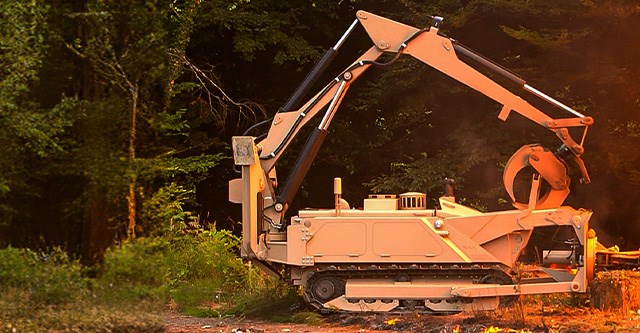

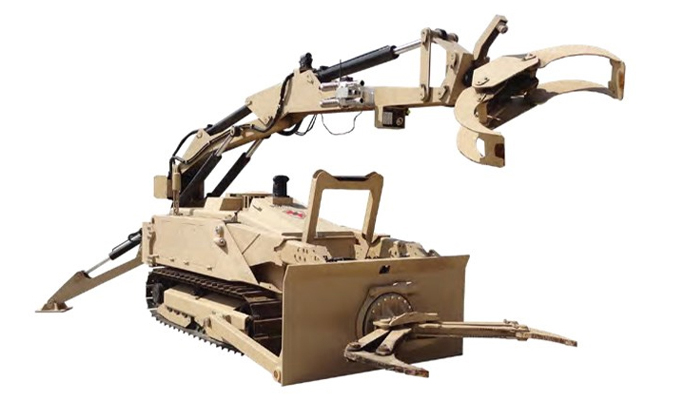

MV 4 – Mult mission EOD Robotic System – Scorpion

The MV-4 is one of the world’s best renowned light category mine clearance and EOD robotic systems. Its low profile and robust structure makes it resistant to all AP mines detonations and UXOs of similar intensity. It can also sustains AT mine explosions. MV-4 is the only mine clearance and EOD robotic system in its category that has proved its efficiency in real combat environment.



Application
  • Mechanical Ground Preparation & Demining
  • Mechanical Technical Survey & Clearance
  • Deep Interrogation Tasks
  • Mobility / Counter Mobility
  • Reconnaissance & Surveillance Tasks
  • Digging Tasks
  • Route Clearance
  • Breaching Tasks
  • EOD Tasks in C-IED

Dimensional data

Length (excl. attachment)

4635 mm

Width (excl. attachment)

2030 mm

Height

1740 mm

Weight (excl. attachment)

6120 kg

Engine type

Perkins

Engine power

186 kW / 250 HP

Engine torque

1050 Nm @ 1400 rpm

Fuel consumption

15 - 25 l/h

Demining capacity

Up to 1400 - 1800 m²/h

Ground pressure

0,59 kg/cm²

Transport speed

7,15 km/h

Operational speed

0,5 - 1,26 km/h

Longitudinal gradeability

36°

Side slope capability

30°

Fording depth

300 mm
