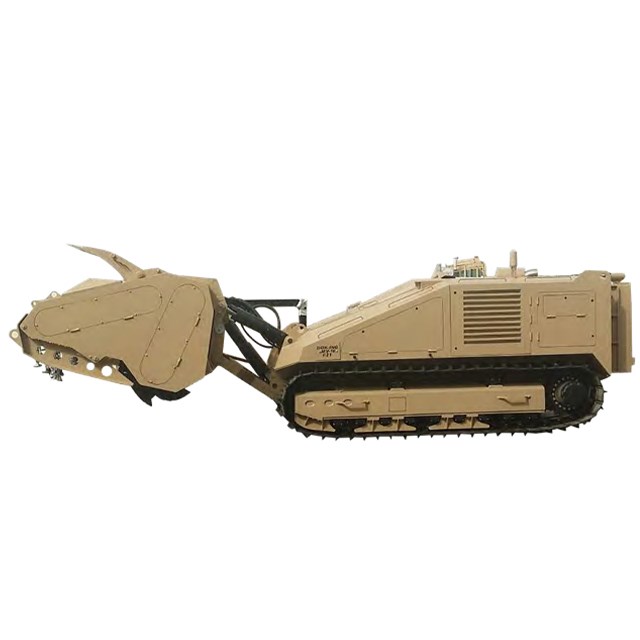

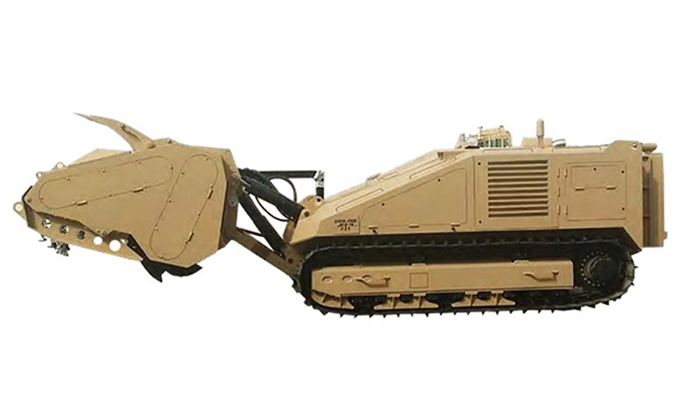

MV – 10 Heavy Duty EOD Robotic System – Bison

The MV-10 is the only robotic system in the world with double tool: front-positioned flail tool followed by a rear tiller. It is the only demining system in its class that has been verified in the real combat situation. Furthermore, due to its high engine power and supreme explosion resistance, the MV-10 presents the strongest system in its category.

The MV-10 is the only robotic system in the world with double tool: front-positioned flail tool followed by a rear tiller. It is the only demining system in its class that has been verified in the real combat situation. Furthermore, due to its high engine power and supreme explosion resistance, the MV-10 presents the strongest system in its category.

Application

Mechanical Ground Preparation & Demining
Mechanical Technical Survey & Clearance
UXO Clearance for shooting ranges
Mobility / Counter MobilityRoute Clearance

Dimensional data

Length

8075 mm

Width

2970 mm

Height

2330 mm

Weight

20920 kg

Engine type

Caterpillar C18

Engine power

571 kW / 766 HP

Engine torque

3495 Nm @ 1400 rpm

Fuel consumption

25 - 50 l/h

Demining capacity

Up to 4000 m²/h

Ground pressure

0,65 kg/cm²

Transport speed

7 km/h

Operational speed

0,5 - 3 km/h

Longitudinal gradeability

37°

Side slope capability

25°

Fording depth

80 cm
