HS - S5 3.3.

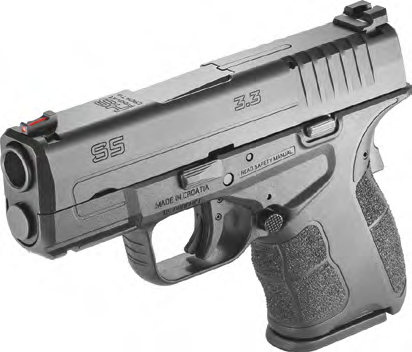

S5 is .45ACP polymer frame, single-stack, striker fired pistol

Featuring 3.3 inch hammer forged barrel and forged slide. Barrel and slide are Melonite treated. Slide has pronounced serrations for easier manipulation and is equipped with fiber optic front sight and tack-rack rear sight. The sights are serrated to prevent the glare. Grip is slimmer with rounded trigger guard and extended beaver-tail for higher hand positioning and better recoil control. All surfaces on gun are rounded to produce “no-snag” effect.

Other features are three safeties - grip safety, trigger safety and firing pin safety along with loaded chamber indicator. Magazine release is fully ambidextrous. S7 comes with two types of stainless steel magazine - one is flush with grip and capacity of 5+1, the other is with grip extension and capacity of 7+1. S5 provides excellent firepower of .45 ACP round in slim, highly concealable design.

Features

Firing Pin Status Indicator

The shooter can check the Striker Status Indicator by sight or touch to verify that the striker is in the cocked position.

The Loaded Chamber Indicator

Allows the shooter to verify, visually or by touch, and without any doubt that there is a round in the chamber.

Trigger Safety system

Guards against accidental discharge from dropping or bumping by locking the HS-9’s trigger in place until direct, rearward pressure is applied.

Grip Safety

Prevents accidental discharge. Discharge is enabled only when simultaneously both: the Grip Safety and the Trigger are pressed while shooting. Point and Shoot ergonomics are combined with a compact and contoured polymer grip and enable natural feel while pointing and aiming.

Specifications

Caliber

.45ACP

Weight - without magazine

618 / 633 ext.mag ± 15 g

Magazine capacity

5rd / 6rd

Height

113,5 /127 mm ext. mag

Barrel length

84,5 mm

Length (overall)

163 mm

Width

26,7

Safety

1. Trigger safety- prevents ununtentional moving of the trigger backwards.
2. Grip safety-prevents firing in case a user does not hold the receiver firmly.
3. Firing pin safety- does not allow the release of the firing pin without pulling the trigger.
