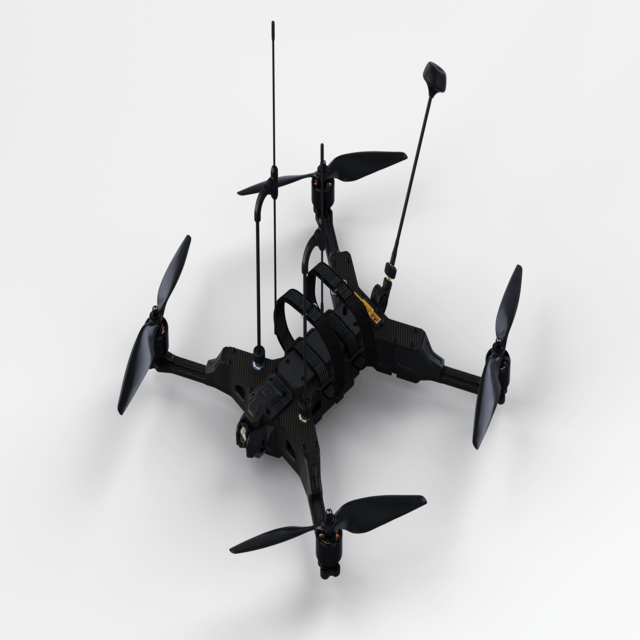

MRM2-10 is a light-weight multi-role First Person View (FPV) multicopter UAV, designed and built for versatility, effectiveness, and cost efficiency.
Depending on a model, MRM2-10 comes either with an EW-resilient IRONghost control link radio operating on licensed sub-GHz bands, or with a 2.4GHz Ghost control link radio operating on an unlicensed ISM band.
All versions are equipped with a 5.8GHz analog video transmitter.
Built around a robust 10” prop airframe, the MRM2-10 strikes a fine balance between vehicle form-factor, payload capacity, and range. Thanks to the IRONghost control link, the MRM2-10 can achieve unparalleled range with best-in-class EW performance
APPLICATIONS
FEATURES
-
Robust carbon fiber body and arms
-
Prop disc separated to clear larger payloads of up to 3.5kg, with correct center of gravity placement
-
30x30 F405 FC with Betaflight, Ardupilot, iNav, and PX4 options
-
30x30 60A ESC with AM32 firmware
-
Analog video transmitter operating on ISM 5.8GHz band
-
C2 link options: EW-resilient dual sub-GHz IRONghost or ISM
-
2.4GHz band Ghost
-
Optional GPS, with integrated magnetometer, and auxiliary barometric altimeter
-
MAVLINK support and ATAK integration with Orqa Tac.Ctrl tactical controller
-
Foldable 5.8GHz video transmitter antenna, mounted clear of battery and payload
